Custom Heads Built for Performance
When standard solutions won’t cut it, Uni-Form Components delivers fully customized vessel heads tailored to your exact specifications. From material selection to precise forming, we ensure every head meets your performance and regulatory requirements.
Heads
Our custom heads are designed and fabricated to fit unique applications, providing the perfect balance of durability, strength, and efficiency for your industry.
Tailored to Your Application
We work closely with you to design and manufacture vessel heads that meet the precise needs of your project.
Expert Craftsmanship & High-Quality Materials

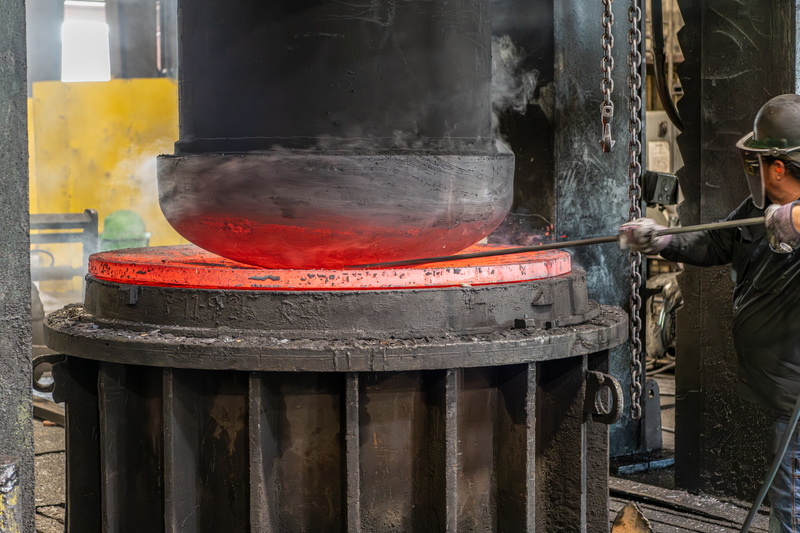

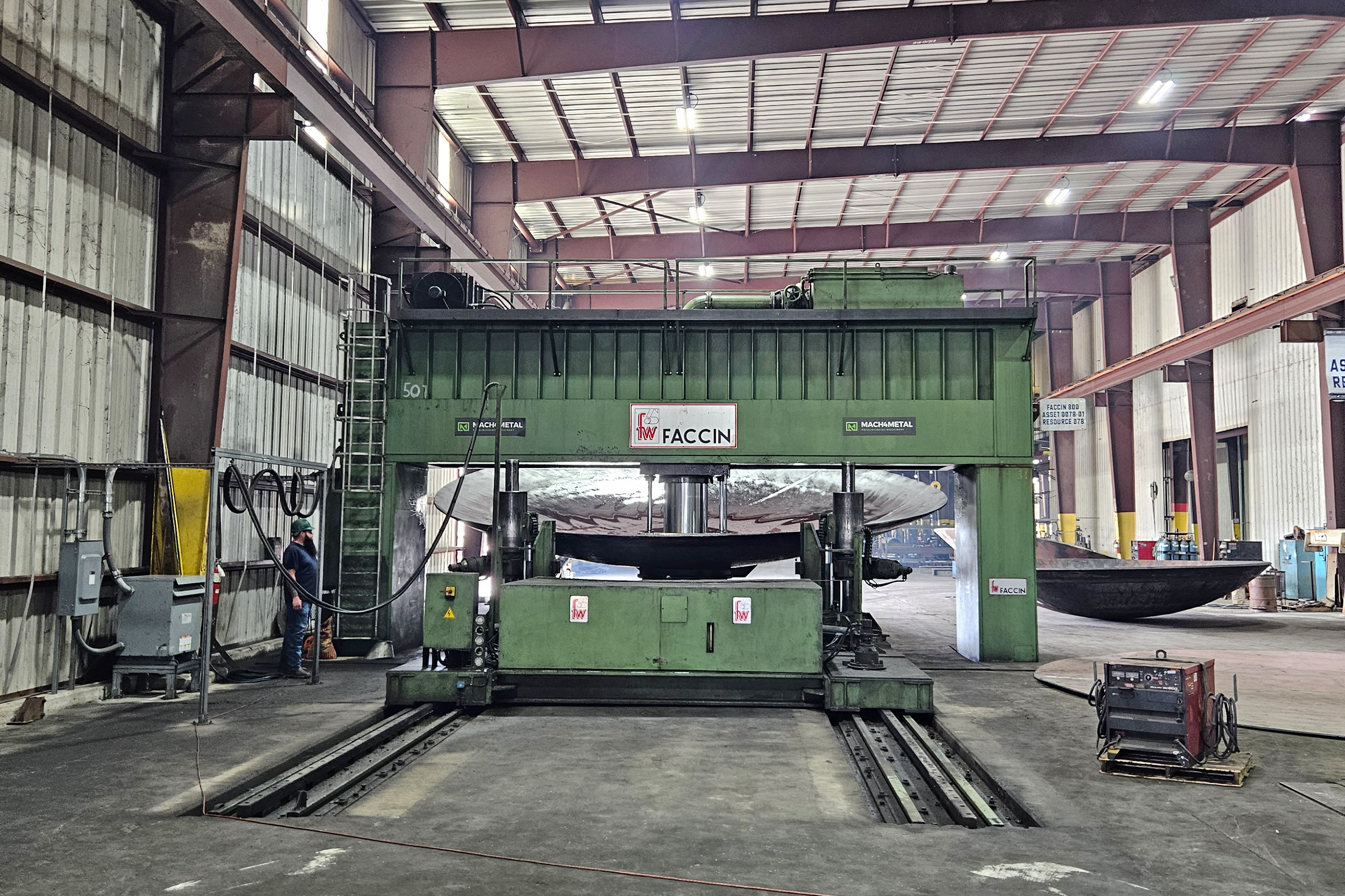

Every custom head is formed using advanced manufacturing techniques and premium materials, ensuring optimal performance and longevity.

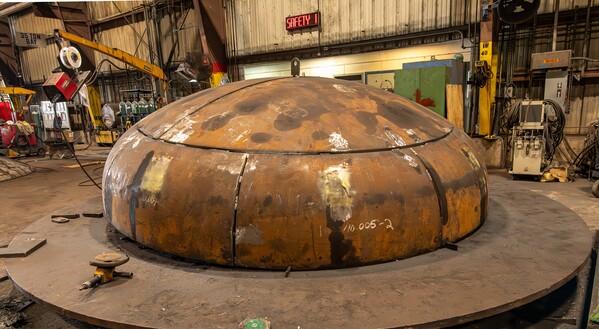

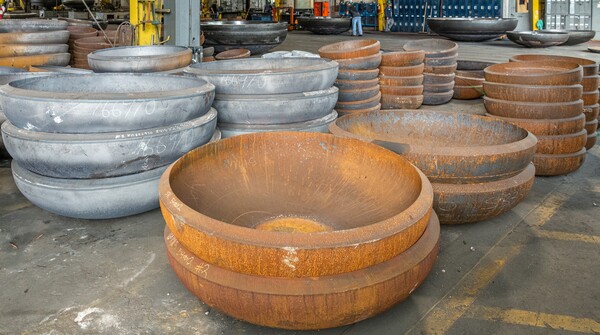

Elliptical
Engineered with a 2:1 ratio, elliptical heads are ideal for pressure applications where strength and efficiency are key.
- Diameter: 6-5/8" - 150"
- Thickness: 3/16" - 9-1/2"
- Diameter: 6-5/8" - 318"
- Thickness: 3/16" - 2-1/2"
Flanged & Dished
A versatile and widely used option, these heads combine a flanged edge with a dished crown for strong, uniform pressure resistance.
- Diameter: 6-5/8" - 156"
- Thickness: 3/16" - 9-1/2"
- Diameter: 6-5/8" - 318"
- Thickness: 3/16" - 2-1/2"
Hemispherical
With equal radius and depth, hemispherical heads offer maximum strength and are well-suited for high-pressure vessels.
- Diameter 6-5/8" - 126"
- Thickness: 3/16" - 9-1/2"
Flanged & Flued
Commonly used in heat exchangers, these heads feature flues (nozzles) and are formed for optimal flow and thermal performance.
- Diameter: 6" - 118"
- Thickness: 3/16" - 9-1/2"
- Diameter: 12-3/4" - 318"
- Thickness: 3/16" - 2-1/2"
Toriconical
These conical heads with a toroidal knuckle transition are designed for smooth flow and reduced stress concentration.
- Diameter 6" - 216"
- Thickness: 3/16" - 9-1/2"
Flanged Only
A basic formed edge without a crown, flanged-only heads are used in assemblies where welding or additional forming is completed onsite.
- Diameter 6" - 156"
- Thickness: 3/16" - 9-1/2"
- Diameter 6" - 318"
- Thickness: 3/16" - 1-1/2"

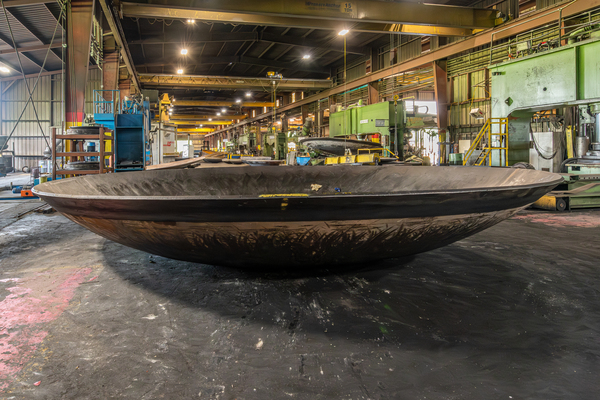

Dished Only
Simple dished heads without a flange, ideal for applications requiring a shallow, formed end without edge preparation.
- Diameter: 3" - 184"
- Thickness: 3/16" - 9-1/2"
- Diameter: 3" - 260"
- Thickness: 3/16" - 6"
